Which ball valves ensure reliable sealing in high-pressure conditions?

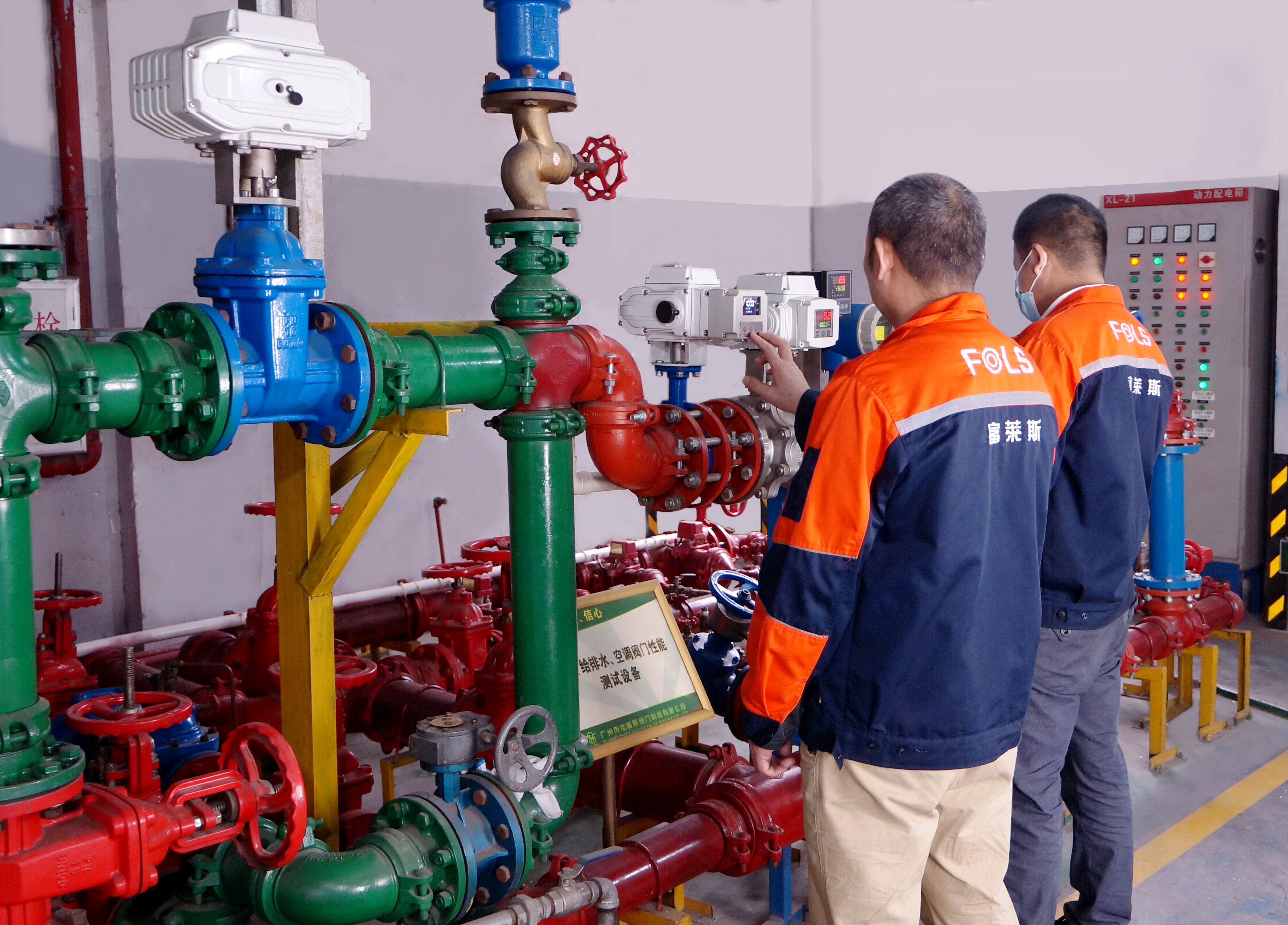

How Ball Valve Design Enables Reliable High-Pressure Sealing

Core sealing challenges: pressure-induced leakage, seat deformation, and stem loading

When it comes to high pressure ball valves, there are really three main ways they tend to fail that all kind of connect with each other: pressure induced leaks, problems with the seat shape, and too much stress on the stem. Leaks happen because the difference in pressure can actually push past what holds the seat in place, especially if the valve is opening and closing quickly. This creates tiny gaps between the ball and where it sits. For seats made from softer stuff like PTFE or rubber materials, compression becomes an issue once pressures go over about 3,000 psi. These materials just can't handle being squeezed so hard anymore. Metal seats have their own issues though. Without those special surface treatments and harder alloy coatings, they start to stick together and wear down. The stem part gets even worse under extreme pressure conditions. Take Class 2500 valves for instance. They experience roughly 48 percent more twisting force compared to regular valves. This means engineers need to think carefully about how to support the trunnion properly and incorporate bearings that reduce friction to prevent damage to the shaft or seals getting pushed out of place.

Critical design elements: body integrity, seat pre-load, and ball surface finish

Getting reliable sealing at high pressures really depends on combining three different mechanical approaches. For starters, when manufacturers forge the entire diameter of the body, it takes care of those pesky stress points where flanges meet ports. This makes sure everything meets ASME B16.34 requirements even at pressure levels as high as 2500 and sometimes higher. Next up is the seat preload system. Some designs use springs while others go with resilient polymers. Either way, these components work actively against thermal contraction and what happens when pressure causes materials to relax over time. They keep that contact force steady no matter what conditions arise during operation. And then there's the ball surface finish. When polished down below 0.4 microns Ra, these surfaces create far fewer places for tiny leaks to form. Lab tests show something remarkable too. In cycles of 5,000 psi hydrogen service, mirror polished balls cut fugitive emissions by nearly 99.7% compared to regular finishes. Put all these together and they form a pressure barrier that holds up whether facing constant loads or sudden temperature changes.

Trunnion-Mounted Ball Valves for High-Pressure Stability

Why trunnion mounting eliminates floating-ball limitations above 3,000 psi

Trunnion mounted ball valves secure the ball between solid mechanical shafts instead of relying on fluid pressure for sealing like traditional floating designs do. The way these valves are built stops both axial and radial movement when subjected to heavy loads, which tackles one of the main problems with floating valves that start leaking once they reach around 3,000 psi or higher. When the ball's movement is restricted through trunnion support, operators actually need about 30 to maybe even 40 percent less torque to operate them at those intense pressures. Plus, this setup keeps the seat loading consistent and predictable throughout operation, even when there are sudden pressure spikes in the system. For applications where maintaining proper isolation is absolutely crucial, this kind of stability matters a lot because if the ball shifts unexpectedly, it can really mess up the seating surfaces and potentially fail completely.

Real-world validation: performance data from API 6D/6FA-certified trunnion ball valves

API 6D/6FA-certified trunnion ball valves undergo fire endurance, fugitive emissions, and cyclic pressure testing–validating performance at sustained pressures exceeding 2,500 psi. Independent industry data confirms their superiority:

Certified units maintain zero detectable leakage after 500+ thermal cycles and meet NACE MR0175 requirements for sour gas environments–proving reliability in subsea, LNG, and refinery hydrocarbon processing.

Metal-Seated Ball Valves: The Standard for Extreme-Pressure Integrity

Metal-to-metal sealing mechanics under thermal cycling and sustained high pressure

Metal seated ball valves work because of the way the hardened ball and seat deform just enough to create a tight seal without any gaps or material being squeezed out. These metal interfaces hold up much better than soft seats when dealing with really high pressures over 1,000 psi and temperatures that go past 400 degrees Fahrenheit. Something interesting happens during thermal cycling too. When stainless steel parts expand differently as they heat up, the pressure between them actually goes up around 15 to 20 percent, which makes the seal tighter. Industry tests have shown this effect for years now. For these valves to last through thousands of operations without failing, surface finishes need to be super smooth, under 16 Ra microinches is ideal. Also important are those hard facing coatings like Stellite 6 that stop metal parts from sticking together and keep the valve from leaking even after repeated use.

When to choose metal-seated over soft-seated ball valves: pressure, temperature, and media guidelines

Metal-seated valves are the definitive choice for extreme conditions requiring long-term integrity, fire safety, or abrasion resistance:

They are mandatory for fire-safe applications per API 607/6FA, where thermal decomposition must not compromise shutoff. In high-temperature steam service (>750°F), they prevent catastrophic soft-seat collapse. Conversely, soft-seated valves remain optimal for low-pressure water systems where bubble-tight closure at minimal torque is prioritized over longevity or extreme-condition resilience.

Material and Construction Choices That Maximize Ball Valve Pressure Performance

Stainless steel grades (F22, F51, F53) and their validated pressure-temperature ratings

The choice of materials really determines how well equipment handles pressure, stands up to repeated stress cycles, and resists corrosion over time. For environments where these factors matter most, engineers often turn to austenitic and duplex stainless steels like F51 (the standard Duplex grade) and F53 (Super Duplex). These alloys pack impressive strength while keeping weight down, plus they handle chlorides exceptionally well, which makes them ideal for offshore platforms and chemical processing facilities. When temperatures climb above 500 degrees Celsius, F22 chrome-moly alloy becomes the go-to option thanks to its superior heat resistance properties. Every one of these materials meets the requirements set forth in ASME B16.34 standards for pressure-temperature ratings, giving manufacturers confidence in their selections for demanding industrial applications.

• F53 (UNS S32750): Minimum yield strength of 550 MPa at 38°C, retaining 480 MPa at 200°C
• F51 (UNS S31803): Maintains 450 MPa yield strength at 100°C in aggressive chloride environments
• F22 (A182 F22): Sustains 205 MPa tensile strength at 540°C

These validated properties ensure consistent sealing performance when matched with compatible seat materials and proper fabrication practices.

Forged vs. cast bodies: impact on structural reliability in ASME B16.34 Class 2500+ service

Forged bodies have clear benefits when dealing with ultra high pressure services above 2500 psi. The way metal grains align during forging gets rid of those tiny pores and impurities we often find in cast parts. This makes a real difference in how they perform over time. Fatigue resistance goes up around 30 percent, they can handle sudden pressure spikes better by about half, and their lifespan triples when subjected to constant pressure changes. When temperatures drop to minus 196 degrees Celsius in cryogenic applications, forged components won't crack like cast ones might because of those hidden flaws. According to ASME standard B16.34, any valve rated at Class 2500 or higher with an 8 inch nominal pipe size must be forged. That's because forged materials are just more uniform throughout and behave predictably. Cast valves work fine for less demanding applications, but if someone needs absolutely no leaks during long term operation at 413 bar or 6,000 psi with hydrocarbons, then forging remains the only reliable option available today. Plus, this reliability helps cut down on those pesky fugitive emissions that regulators always worry about.
