What performance standards should an electric actuator meet for valve control?

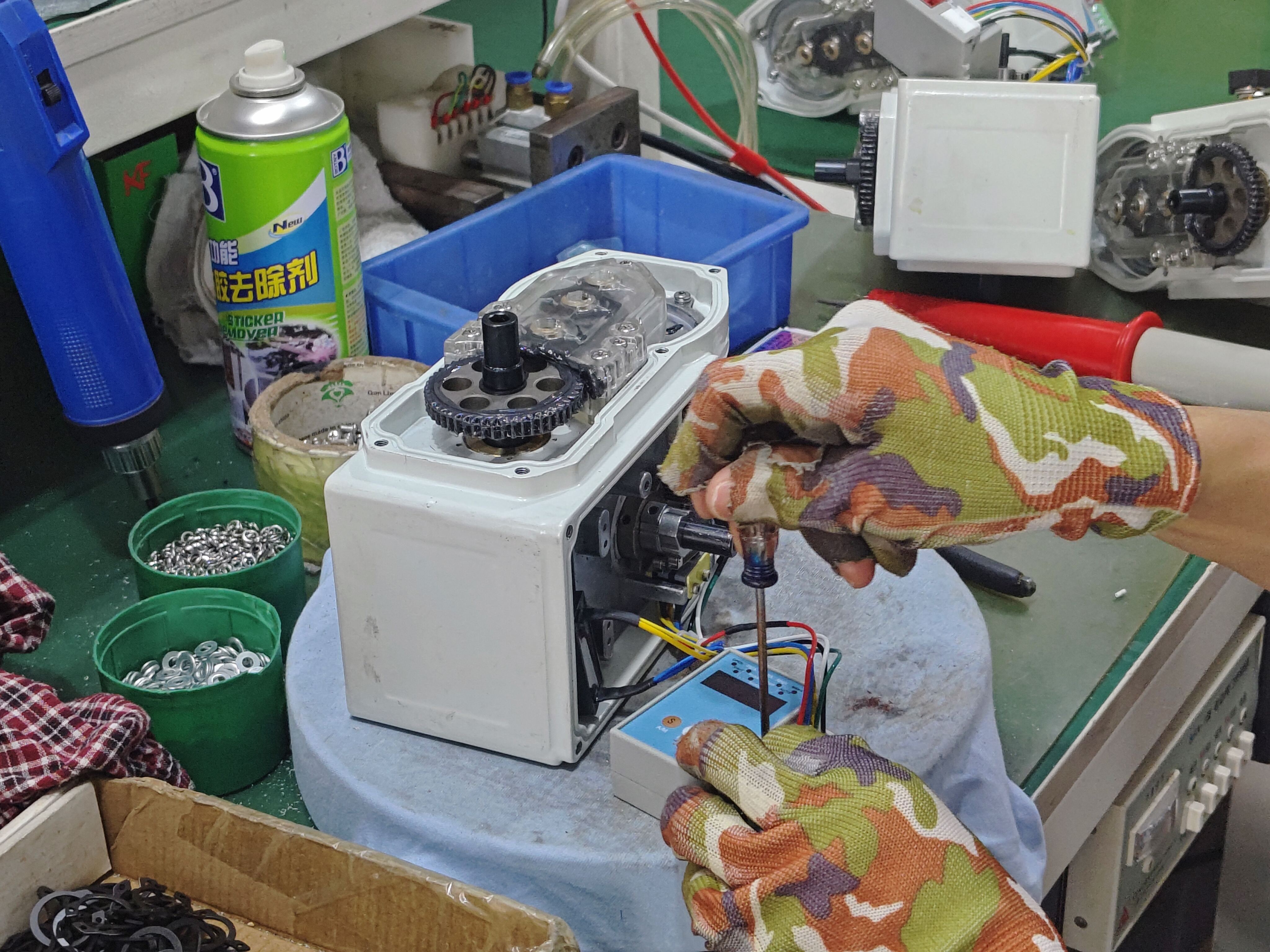

Core Mechanical and Electrical Performance Requirements

Electric actuators must deliver precise mechanical outputs tailored to specific valve control applications. Selecting models that align with both operational demands and recognized industry benchmarks ensures optimal performance across diverse industrial environments.

Torque and Thrust Output Based on Valve Type and Operating Conditions

Electric actuators need different amounts of torque and thrust based on what kind of valve they're working with and where they're installed. Ball valves and butterfly valves, which only turn a quarter circle, usually need around 20 to 30 percent less torque than those big multi-turn globe valves dealing with really pressurized fluids. Take a look at actual installations: a standard 6 inch ball valve used in water treatment facilities typically needs about 250 Newton meters of torque, but switch that same size valve to an oil refinery setup and suddenly we're talking closer to 400 Nm because crude oil just doesn't flow as easily through pipes. When it comes to steam systems running over 150 pounds per square inch, most actuators have to handle thrust forces well beyond 8,000 Newtons to push against all that pressure. On the flip side, HVAC systems generally stay much lighter duty wise, rarely going past 3,000 Newtons of thrust force requirement.

Motor Insulation, Duty Cycle, and Continuous Operation Reliability

The reliability of electric motors really depends on whether their insulation systems meet the IEC 60034-27-4 standards when it comes to dielectric strength and how well they handle heat over time. Most industrial actuators are built with either Class F insulation rated at 155 degrees Celsius or the higher performing Class H at 180 degrees Celsius. These materials help them survive all those repeated starts that happen regularly in S2 short-time duty operations or the more complex S4 intermittent duty cycles which include braking periods. Speaking of S4 cycles, these are pretty standard in batch processing environments where equipment typically runs at around 15% capacity but can manage as many as 150 starts per hour. On the other hand, S2 duty allows for continuous running for about half an hour straight. When dealing with continuous S1 duty situations like those found in oil refineries, operators need to keep motor windings under 130 degrees Celsius throughout entire 8 hour shifts. This temperature control has been shown through recent research published last year to be absolutely critical in avoiding premature insulation breakdowns that cost companies both money and downtime.

Compliance With ISA96.02 and Other Industry-Specific Performance Benchmarks

When electric actuators meet the ISA96.02 specs, they deliver the necessary mechanical stiffness that allows valves to modulate precisely with around a 2% positioning error margin. Many industries also look at ISO 16750 requirements when evaluating equipment, particularly regarding vibration resistance across frequencies from 5 to 2000 Hz and those protocol tests for 50g shocks. Together these standards help confirm that actuators can last through their expected 15 year plus lifespan in tough environments like power plants and chemical processing facilities. The ISA96.02 standard specifically calls out torque accuracy needs at about ±2% for proper control modulation. Meanwhile, the ISO 16750 standard makes sure actuators can handle those intense 50g shock loads that happen during shipping and handling.

Control Precision and Signal Integration Capabilities

On/Off vs. Modulating Control: Impact on System Accuracy and Response

Electric actuators typically come with two main control options: simple on/off switching and more sophisticated modulating control that allows variable positioning. The basic on/off type works fine for straightforward shut off needs, though it only offers around plus or minus 5% accuracy in positioning. For applications requiring finer control like adjusting throttle valves in steam or gas lines, modulating control delivers much better results with about half a percent precision. Industry data shows these electric models respond 40% faster than older pneumatic systems, which makes a big difference in operations where timing matters most, especially in chemical processing facilities where flow control is critical.

Control Type	Accuracy (%)	Response Time (sec)	Energy Efficiency
On/Off	±5	1-2	Moderate
Modulating	±0.5	0.3-0.7	High

4-20mA Feedback and Closed-Loop Control for Real-Time Monitoring

Actuators today commonly rely on 4-20mA analog signals to send along valve position information, following the ISA96.02 guidelines for industrial instruments. Pairing these with closed loop control algorithms allows for pretty quick responses when there's a change in pressure or temperature conditions. Systems can adjust themselves almost instantly, typically within around 50 milliseconds after detecting any fluctuations. Looking at what's happening in the field right now, many operators have noticed something interesting about water treatment facilities. Those plants that integrate PLC and SCADA systems with this kind of feedback mechanism tend to see their processes become much more stable. Some industry reports indicate that process variability drops by about 27% compared to older setups without such feedback loops, which makes a big difference in day to day operations.

Intelligent Actuators: Built-In Diagnostics and Communication Protocols

Top-tier electric actuators now embed self-diagnostic tools that monitor motor temperature, gear wear, and seal integrity, flagging issues 8-12 weeks before failures occur. Support for HART 7 and PROFIBUS protocols allows seamless integration with IIoT ecosystems, enabling predictive maintenance strategies proven to cut downtime by 33% in oil & gas operations.

Environmental Resilience and Protection Standards

Electric actuators must maintain operational integrity in challenging environments, requiring specific protection classifications and safety-oriented engineering. Proper environmental resilience ensures reliable valve control while reducing maintenance costs in critical industrial applications.

IP and NEMA Ratings for Dust, Moisture, and Hazardous Environments

When it comes to industrial electric actuators, they generally need at least IP54 protection against dust and water ingress, though many applications actually call for the higher IP65 or even IP68 ratings. Chemical processing plants typically specify NEMA 4X enclosures because these provide that extra layer of defense against corrosive substances. The offshore oil sector is another story altogether where actuators must handle brutal conditions. These installations usually require IP66 rated equipment since they face constant salt spray and humidity levels that can go above 95% relative humidity without failing. Wastewater treatment operations present their own challenges too. Facilities dealing with hydrogen sulfide gas have found that going with NSF/ANSI 372 certified stainless steel housings makes all the difference in preventing those costly material failures over time.

Explosion-Proof Design Requirements for Oil & Gas and Chemical Applications

Actuators certified under ATEX and IECEx standards come equipped with special flame path containment systems designed to stop ignitions from happening in those really dangerous Zone 1 or Division 1 areas where methane and hydrogen gases are present. The spring loaded shaft seals keep things safe even when pressure reaches as high as 15 bar. Meanwhile, the motor windings are insulated with ceramic material which stops sparks from forming, something especially important in places like petroleum refineries. According to some research published in 2023 on industrial safety, equipment that meets the API 607 fire safety requirements actually cuts down on valve related hydrocarbon leaks by around three quarters in gas processing facilities across the board.

Operational Safety and Fail-Safe Mechanisms Under Extreme Conditions

Temperature Range Tolerance in Industrial and Outdoor Settings

Electric actuators need to work without fail through some pretty extreme temperatures found in industry settings. We're talking anywhere from minus 40 degrees Celsius all the way up to 85 degrees Celsius (that's roughly -40 to 185 Fahrenheit). When they're installed in places like steel manufacturing plants or oil pipelines in the Arctic, these devices need special parts that can handle both heat and cold. Think things like motor insulation that won't melt at high temps and lubricants that stay fluid even when it gets really chilly outside. For equipment placed outdoors where weather is unpredictable, manufacturers have to follow certain standards like IEC 60068-2-1. These tests basically throw actuators into situations where temperatures swing wildly from freezing to blistering hot, just to make sure they don't break down when put through their paces in real world conditions.

Fail-Safe Modes: Spring Return, Holding Brakes, and Backup Power Systems

Multi-layered redundancy ensures valve safety during system failures:

• Spring return mechanisms force valves to preset safe positions (open/closed) within 5-30 seconds of power loss
• Electromagnetic holding brakes prevent unintended valve movement during power fluctuations
• Supercapacitor backups maintain critical operations for 15-90 minutes while triggering shutdown protocols

These mechanisms align with ISO 13849-1 Performance Level "d" requirements, achieving 99.9% reliability in offshore oil rigs and chemical plants. For example, spring-return actuators dominate gas pipeline isolation valves, where immediate closure during emergencies prevents leaks.

Application-Specific Selection and Real-World Implementation

Matching Electric Actuators to Valve Types: Ball, Globe, Butterfly, Plug

For electric actuators to work properly, they really need to match up with what the specific valve requires. Take ball valves for instance they typically need something that can handle about 90 degrees of rotation, around 1,200 inch pounds or less for those standard 6 inch class 150 models. Globe valves are different though these ones want linear thrust actuators that can push with around 10,000 pounds of force when shutting off under pressure. Butterfly valves generally do well with smaller, more compact actuators providing between 25 to 800 inch pounds of torque, but this varies based on how big the disc actually is. And then there are plug valves which are a bit trickier since they require actuators that not only deliver rotational force somewhere between 300 and 2,500 inch pounds but also include some kind of position sensing capability so operators know exactly where the valve stands at any given moment.

Valve Type	Torque/Thrust Range	Key Actuator Feature
Ball	±1,200 in-lbs	Quarter-turn rotation
Globe	±10,000 lbf	Linear thrust precision
Butterfly	25-800 in-lbs	Compact housing
Plug	300-2,500 in-lbs	Multi-turn positional control

Industry-Specific Needs: Oil & Gas, Water Treatment, and Chemical Plants

Actuators used in oil and gas environments need to handle sulfide stress cracking issues as specified by NACE MR0175 standards, plus they have to function reliably even when temps drop to -40 degrees Celsius in Arctic conditions. For water treatment operations located in areas prone to flooding, getting IP68 rated equipment is pretty much table stakes these days. Meanwhile over at chemical processing sites, engineers specifically look for actuators featuring Hastelloy C22 stems since regular materials just can't stand up to hydrochloric acid exposure. According to some recent industry data from 2024, around three out of four refinery managers are now insisting on emergency shutdown systems that respond faster than 300 milliseconds. This kind of performance specification has become increasingly important across multiple sectors.

Case Study: Optimizing Actuator Selection in a Chemical Facility

A chlor-alkali plant reduced pump cavitation incidents by 63% after replacing pneumatic actuators with electric models featuring:

• Modbus TCP/IP communication for real-time pH and pressure monitoring
• 500-cycle/hr duty rating for frequent brine flow adjustments
• Titanium-coated gears resisting chlorine vapor corrosion

Post-implementation data showed a 41% drop in maintenance costs and 22% longer valve service life, validating the importance of application-driven actuator selection.

Frequently Asked Questions

What types of valves require different torque and thrust from electric actuators?

Electric actuators require varying amounts of torque and thrust depending on the valve type they operate, such as ball valves, globe valves, butterfly valves, and plug valves, as well as the operating conditions.

How does motor insulation affect actuator reliability?

Motor insulation affects actuator reliability by determining how well it withstands heat and dielectric stress over time, influencing operations in short-time duty cycles or continuous running scenarios.

Why is compliance with ISA96.02 important for electric actuators?

Compliance with ISA96.02 ensures electric actuators provide mechanical stiffness with minimal positioning error and can operate effectively under rugged conditions, enhancing lifespan and reliability.

What is the benefit of modulating control over on/off control?

Modulating control offers improved precision with about 0.5% positioning accuracy, compared to ±5% with on/off control, making it vital for fine-tuning flow in steam or gas lines.

How do IP and NEMA ratings affect actuator performance?

IP and NEMA ratings provide levels of protection against dust, moisture, and corrosive environments, indicating which actuators are suitable for specific challenging industrial applications.

What fail-safe mechanisms are used in electric actuators?

Fail-safe mechanisms in electric actuators include spring return, holding brakes, and backup power systems to ensure valve safety and operation continuity during power failures.
