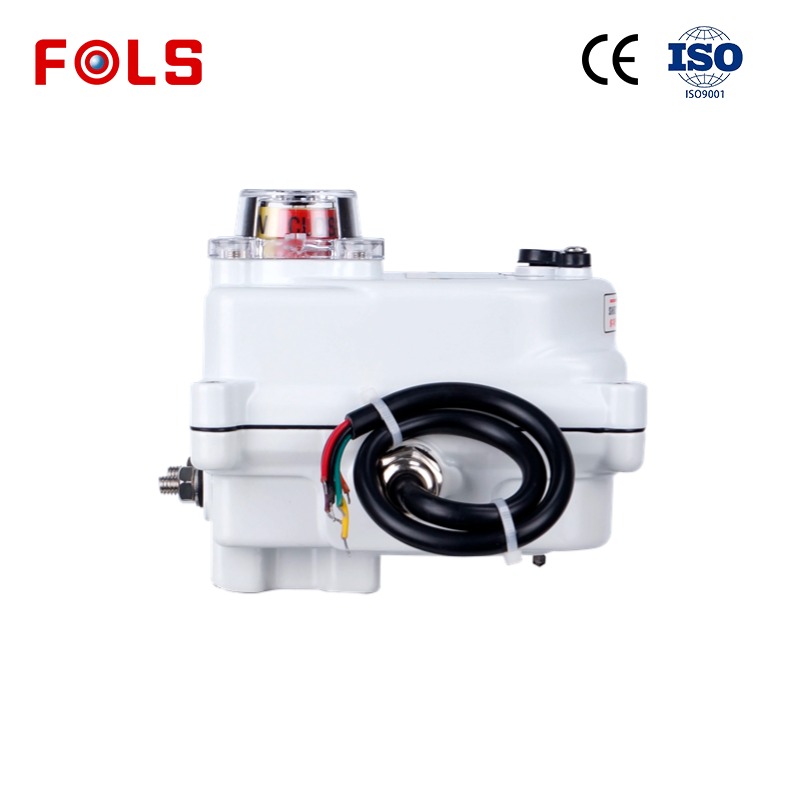

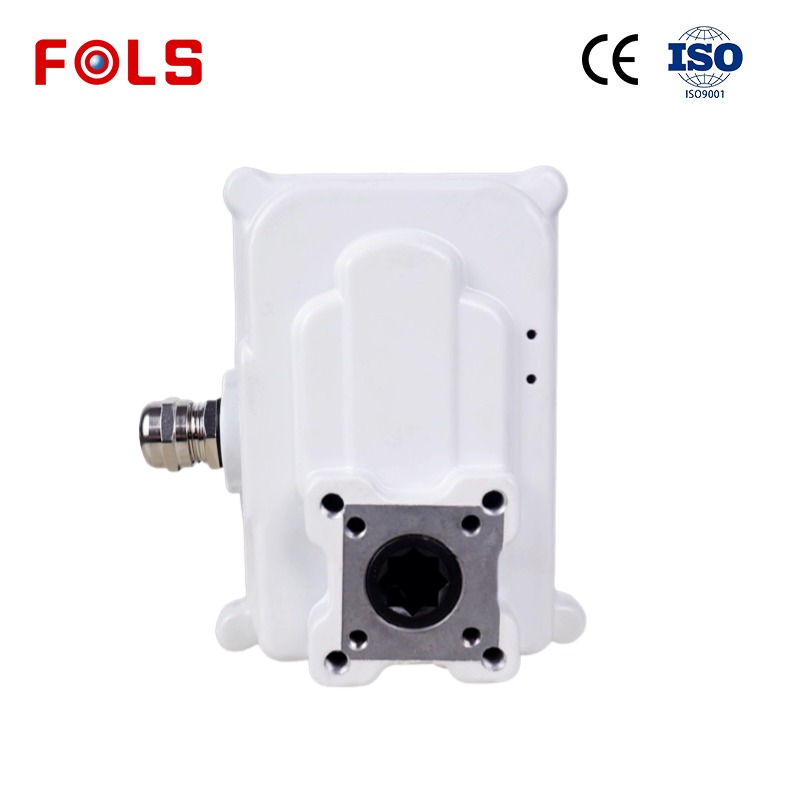

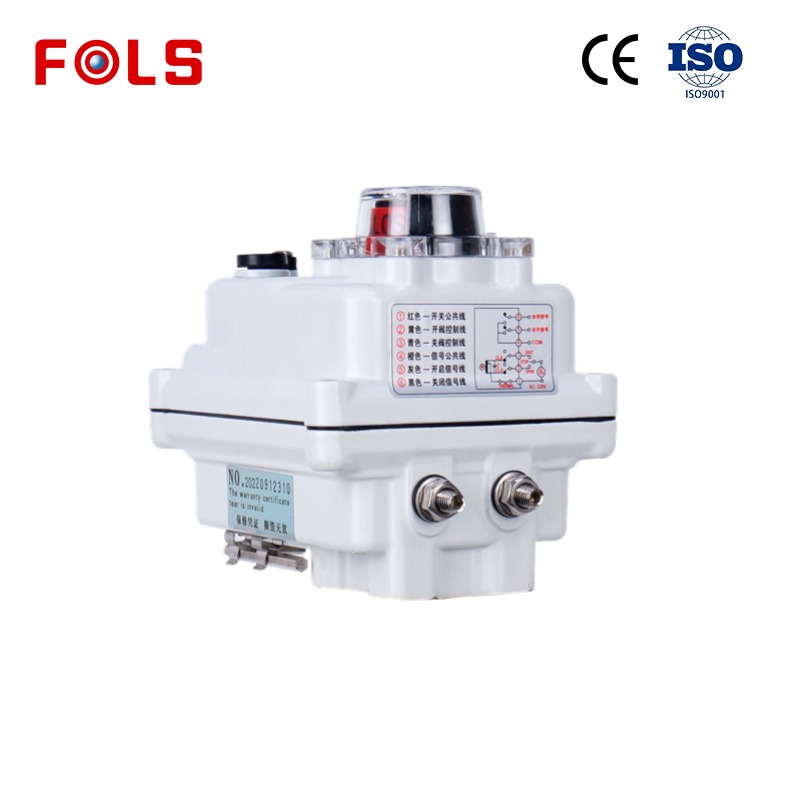

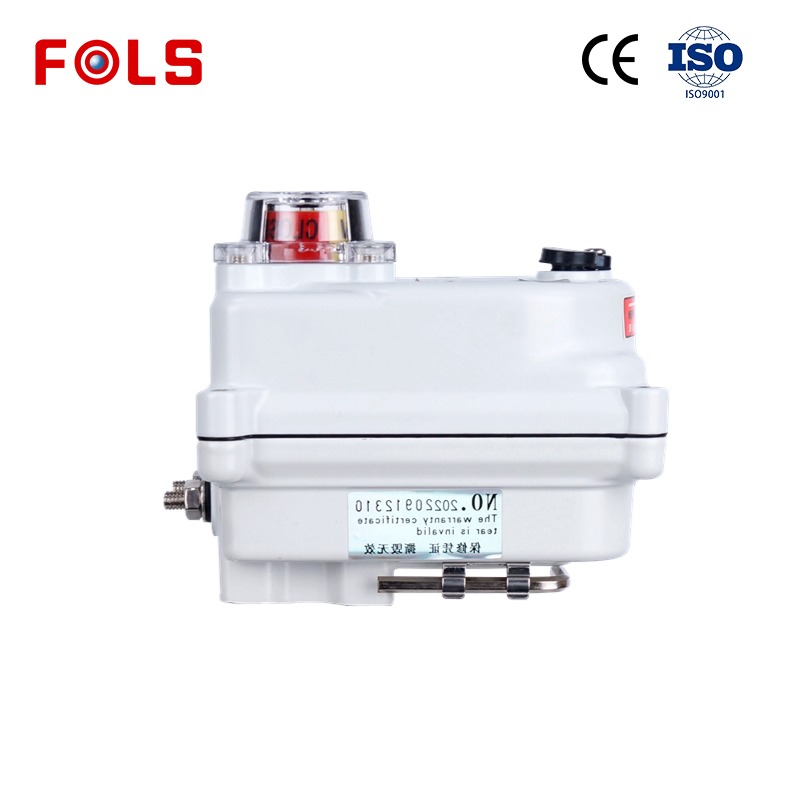

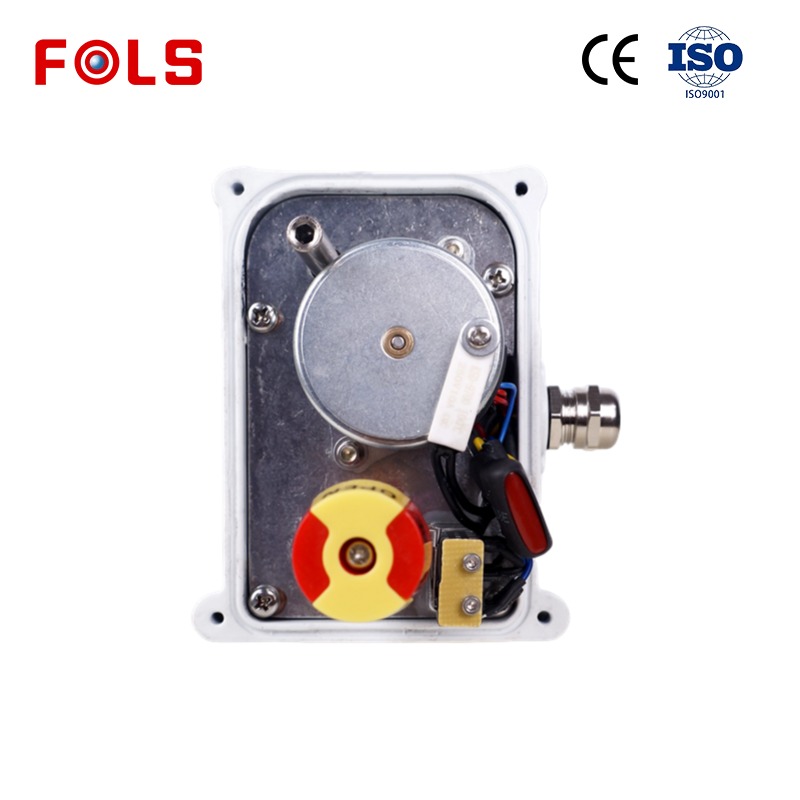

Compact electric actuator（White）

Precision Drive · Intelligent Control · Core of Industrial Automation

· German Precision Technology: Adopts a worm gear drive structure with IP65/IP67 waterproof design, torque range from 30Nm, suitable for extreme environments from -30℃ to +60℃.

· Universal Compatibility: Supports AC220V/24V/DC24V multi-voltage input, equipped with 4-20mA/0-10V signal feedback system, seamlessly integrates with PLC/DCS control systems.

· Dual Safety Protection: Overload protection module + mechanical limit device. QT series is ATEX/IECEx explosion-proof certified, suitable for hazardous areas such as petrochemical and natural gas.

· Smart IoT Upgrade: FOSD series integrates Modbus RTU communication protocol for remote monitoring and predictive maintenance, reducing equipment downtime risks.

· International Certifications: ISO 9001 quality system, CE safety directive, FDA food-grade certification, serving industrial automation projects

in over 80 countries.

Suitable for the ball valve and butterfly valve.

Advantages Of FOLS Electric Valve Actuators

·  Self-lock and overloading protection to keep your valve and pipeline safe

·  Multiple control methods including manual override, signal control, AC/DC power supply to allow you flow control remotely

·  90 degrees rotations and ISO5211 direct mounting for ball and butterfly valve

·  Quality and heavy-duty motor, compact design with high torque up to 6000Nm to ensure the valve open/close fully

·  Rugged polyester powder-coated aluminum enclosure for outdoor uses

·  Our circuit boards in the actuator are sealant coated to avoid humidity and short circuit

·   ON/OFF Type Electric Actuator：90 degree rotation. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

·    Modulating Type Electric Actuator： Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

·    Intelligent Type Electric Actuator：Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

Parameters of Type 03 Electric Head

Application Of Quarter-Turn Electric Actuators:

FOLS Quarter-turn automatic electric actuator driven by AC/DC power supply, and it could feedback or receive the signal to help to control the valve remotely. To help you save the time of operating the valve.

We have ON/OFF type, Modulating type and Intelligent type actuator to offer the flexible fluid control solution for you.

Application Of Quarter-Turn Electric Actuators:

FOLS Quarter-turn automatic electric actuator driven by AC/DC power supply, and it could feedback or receive the signal to help to control the valve remotely. To help you save the time of operating the valve.

We have ON/OFF type, Modulating type and Intelligent type actuator to offer the flexible fluid control solution for you.

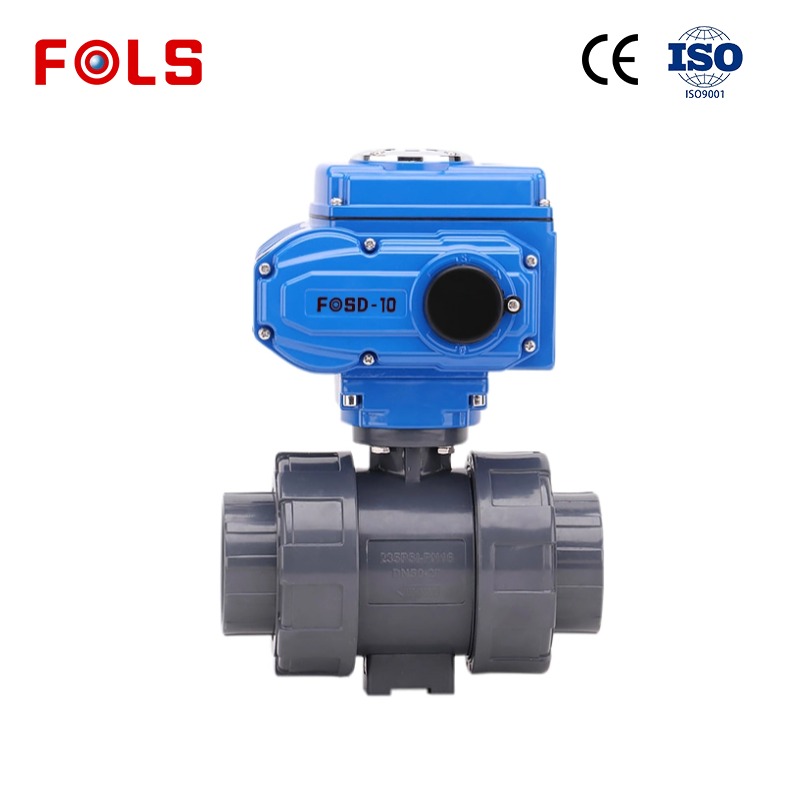

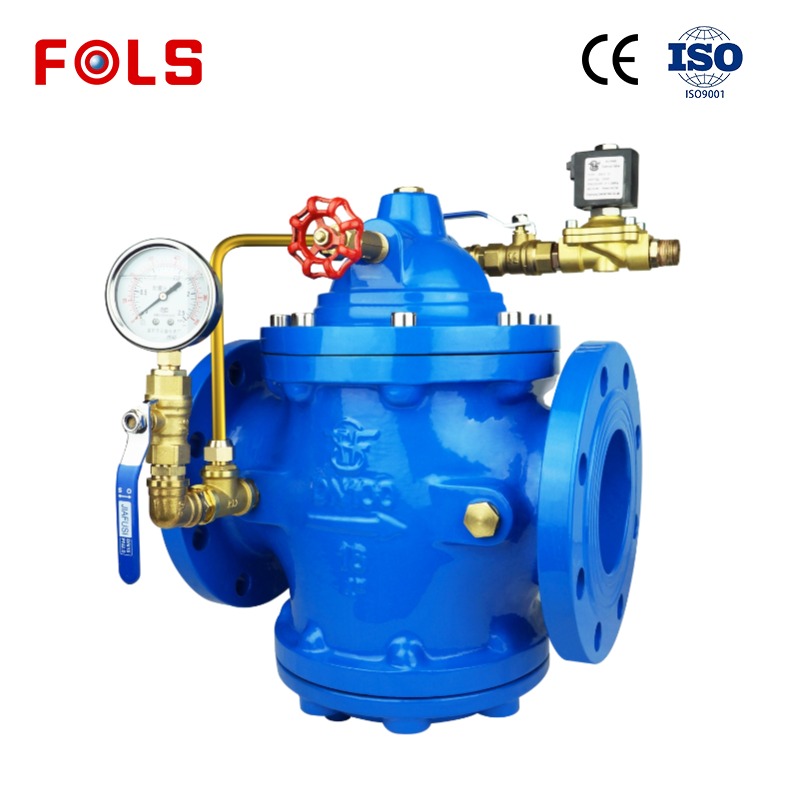

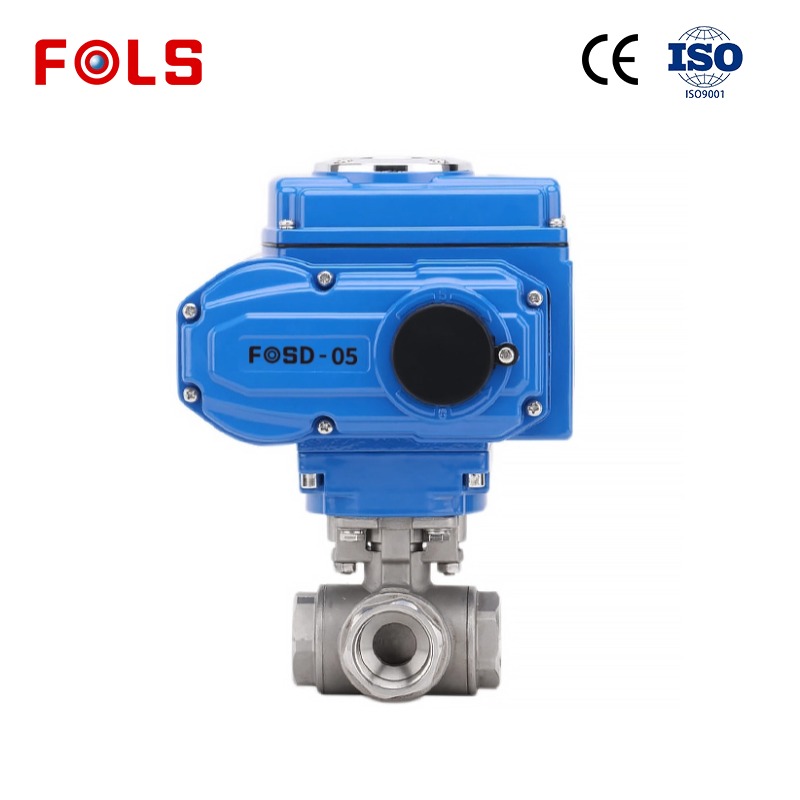

Valve Body Matching

We have a source factory that produces electric actuators and matching valves, and supports OEM /ODM

If you are looking for an electric valve actuator manufacturer, you are in the right place. FOLS is an electric valve actuator manufacturer in China. Manufacturing 3 types of quarter-turn electric actuators for your actuation solutions like ON/OFF type, Modulating type and Intelligent type. 90-degree rotary and direct ISO5211 mounting for ball and butterfly valve. Multiple control methods for your choice to meet the requirement of your application.

If you have any demand for electric actuator or wanna get a free actuator solution, please contact us [email protected]
For more product inquiries, please contact us www.folsv.com/contact

Packaging and Logistics:

As a leading supplier of electric ball valves, FOLS' mission is to provide customers with excellent products, highly competitive prices, precise delivery cycles, and comprehensive after-sales support.

From pre consultation to post maintenance, we provide you with one-stop service throughout the entire process, ensuring that you receive professional support at every stage of the project and always walking alongside you.

Purchase Guide

·   Confirm the valve size you need. We offer 30Nm to 6000 Nm. Electric actuator to fit your valves.

·   Confirm the connection standard of your valves. Such as ball valve in ANSI, JIS, DIN, and UK standard.

·   Confirm the pressure and working temperature. Pressure and temperature are the important points and those may affect the cost.

·   Confirm the voltage you need. The right voltage could help your valve operate better.

·   Confirm the actuator type you need. We have on/off type, modulating type, intelligent type, explosion-proof type, IP68 type and auto return type electric valve actuator for your project.

·   More information, please send message to us. Quote will be provided within 2 hours!

Installation Instruction

·    Verify that the valve breakaway torque is less than the rated output torque of the actuator.

·    Any mechanical stops that would interfere with the operation of the actuator must be removed before installation of the actuator,i.e.lever,travel stops,etc.

·    The actuator output coupling must be centered with the valve stem to prevent side loading, which causes premature stem packing wear.

·    To use the manual override feature (identified on cover label), the override shaft must be pressed down firmly at least 1/4" in order to disenaage the motor from the gears. The manual override is not designed to overcome torque in excess of the rated torque of the actuator. Serious damage to the gear system may result from excessive turning force on the manual override.

·    This Series actuator may be mounted in any position, i.e.horizontal, upside down. If the conduit entrance points upward, conduit piping must be oriented as to prevent condensation from entering the actuator from the conduit pipe.
